28 Series Hybrid Stepping Motor 2 Phase High Torque Stepper Motor With Gearbox

Name: 28 Series Hybrid Stepping Motor 2 Phase High Torque Stepper Motor With Gearbox
Brand: XM-Motor
Price: 1 USD

Brand Name : XM-Motor

Model Number : Hybrid Stepper Gearbox Motor 28 Series

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100pcs

Price : 1~10 USD/PC

Payment Terms : L/C,D/P,T/T

Supply Ability : 100000PCS/month

Delivery Time : 35days

Packaging Details : CTN OR CUSTOMIZED

Name : High Torque Stepper Motor With Gearbox

size : standard

packing : CTN or customized

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : small stepper motor high torque

Construction : PM

color : customized

Application Field : Our products are widely applied in industries such as automation, AGV, robotics, textiles, printing, packaging, medical devices, logistics, communications, home appliances, and automotive.

Contact Now

Hybrid Stepping Motor Hybrid Stepper Gearbox Motor 28 Series Step Accuracy ±5% Temperature Rise 80°C Max Ambient Temperature Range -20°C - +50°C Insulation Resistance 100MΩ @ 500 VDC Dielectric

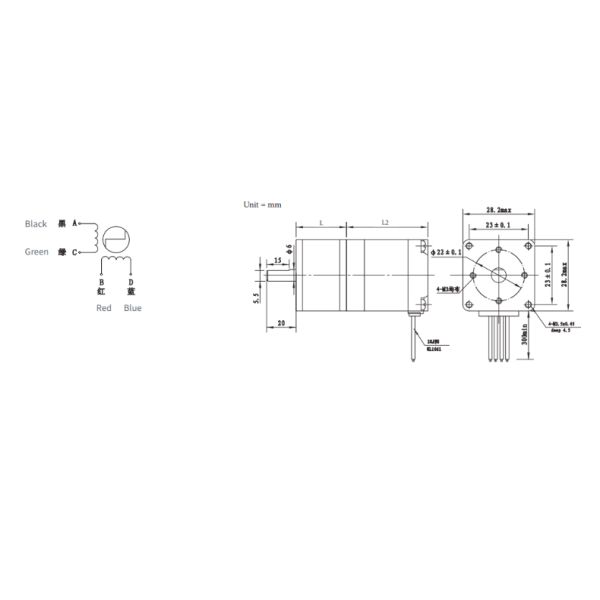

Hybrid Stepper Gearbox Motor 28 Series

Product Overview

Parameter	Technical Specification
Step accuracy	±5%
Temperature rise	80°C Max
Ambient temperature range	-20°C - +50°C
Insulation resistance	100MΩ @ 500 VDC
Dielectric strength	500V AC for 1 minute

Technical Data

Motor Model	Gear Ratio	Gearbox Diameter (mm)	Phase Voltage (V)	Phase Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Static Torque (N·m)	Gearbox Height (mm)	Motor Height (mm)	Total Weight (kg)
28BYGH102 - 39AG6	1/6	28	4.22	0.67	6.3	3.2	0.06	28.5	32.5	0.22
28BYGH507 - 02AG6	1/6	28	4.56	0.67	6.8	4.9	0.095	28.5	54	0.31

Planetary Gearbox 28 Square Type
Reduction Ratio	Instantaneous Allowable Load (Nm)	Length (mm)	Number of Reduction Stages
1/3	0.6	28.5	1
1/6	-	-	1

Planetary Gearbox 28 Round Type
Reduction Ratio	Instantaneous Allowable Load (Nm)	Length (mm)	Number of Reduction Stages
1/14	1.5	29.8	1
1/30	-	-	1
1/64	5	40.0	1
1/10 7	-	-	1
